This is where my new engine rebuild starts...
Its taken me too long to find, source these bits and
seemed even longer to get them back from the engineering shop. Now they are
here, i took some pictures.
UPDATE: - 17/05/2008 engine built and will be going in in a
few weeks... please check back for updates. :)
|
|
|
|
Cleaned bottom end
|
|
|
|
Block face, skimmed
|
|
|
|
T16 Block - needs painting
|
|
|
|
Re-bore 86mm
|
|
|
|
Honing
|
|
|
|
|
|

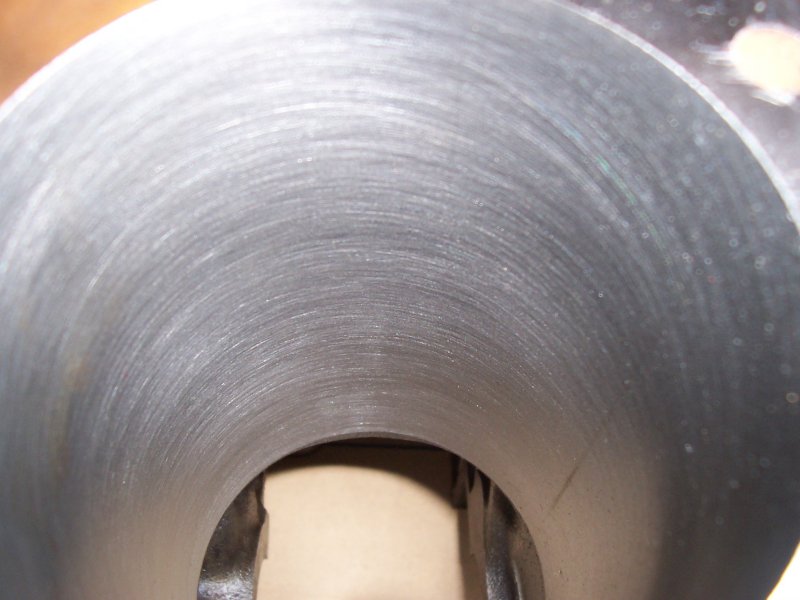

Close up..Ooo virgin
|
|
|
|
Standard Crank - Balanced & polished
|
|
|
|

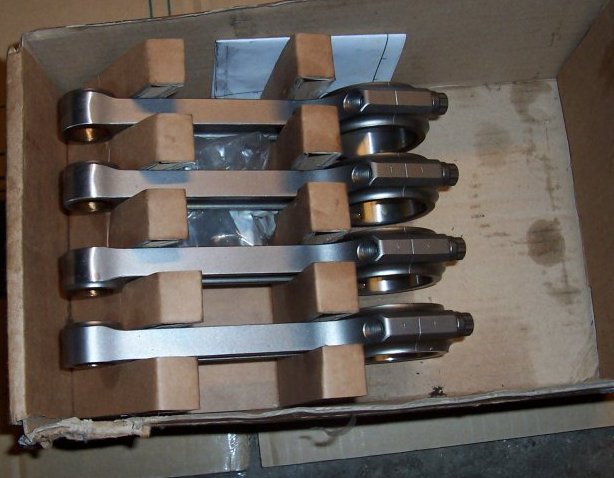

Farndon rods - 160mm centers
|
|
|
|
I beam... balanced
|
|
|
|
Oil Spray holes
|
|
|
|
|
|
86mm Wossner pistons - balanced
|
|
|
|
Moly Coated skirt
|
|
|
|
21mm floating wrist pin
|
|
|
|

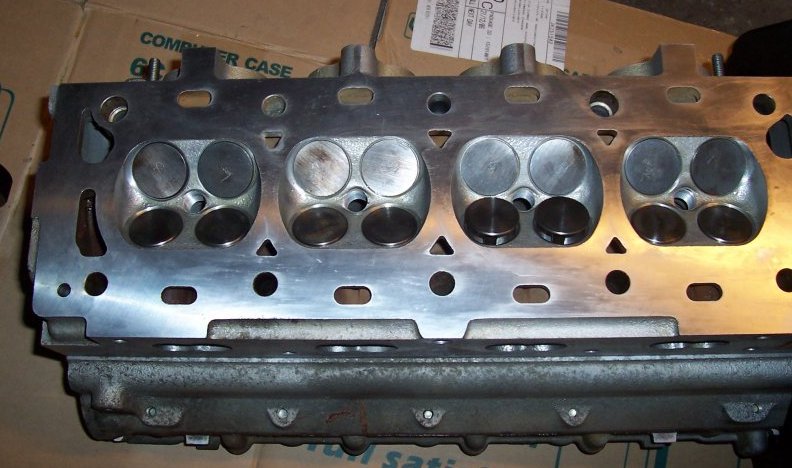

3 Angle valve seats, new guides, blend and polish valve throat, cut back valve stems
|
|
|
|
Cleaned
|
|
|
|
|
|
Skimmed
|
|
|
|
Helix 6 paddle clutch - semi metallic
|
|
|
|
Helix pressure plate - standard flywheel - balanced
|
|
|
|
Alloy crank pulley
|
|
|
More
bits: -
|
|
|
|

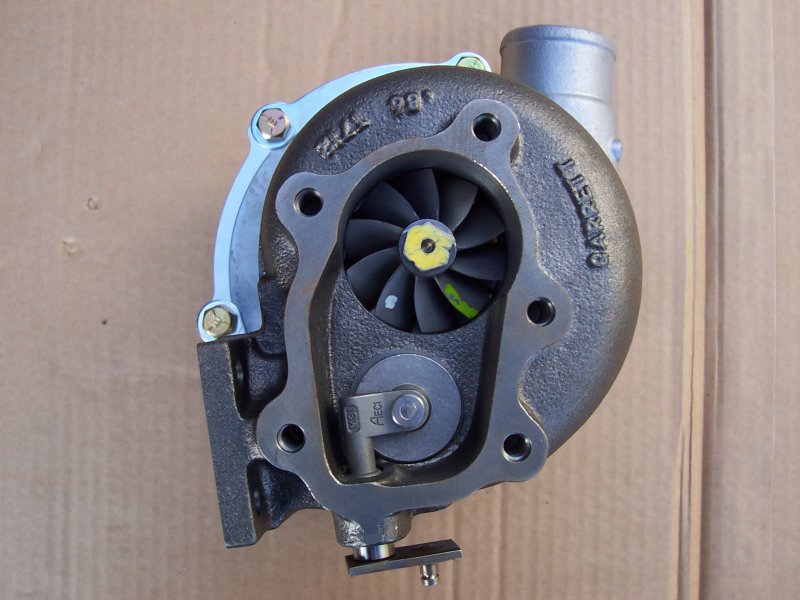

New hybrid custom built turbo
|
|
|
|
|
|
|

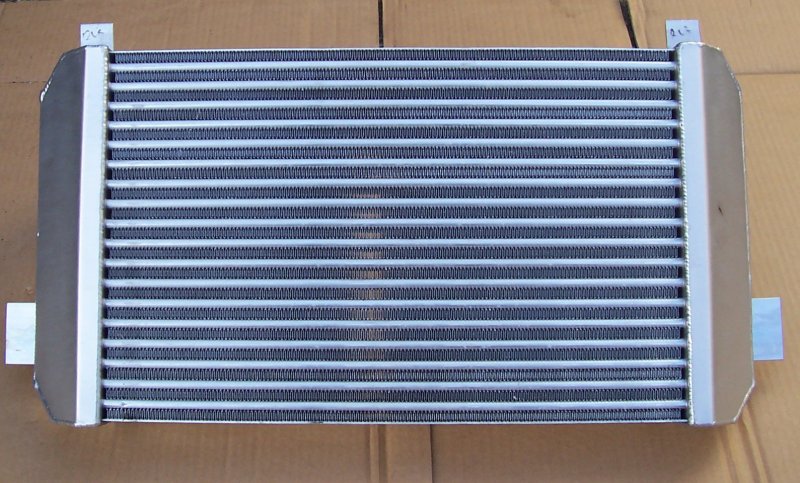

New 'GBE' EVO intercooler
|
|
|
|
|
|
|

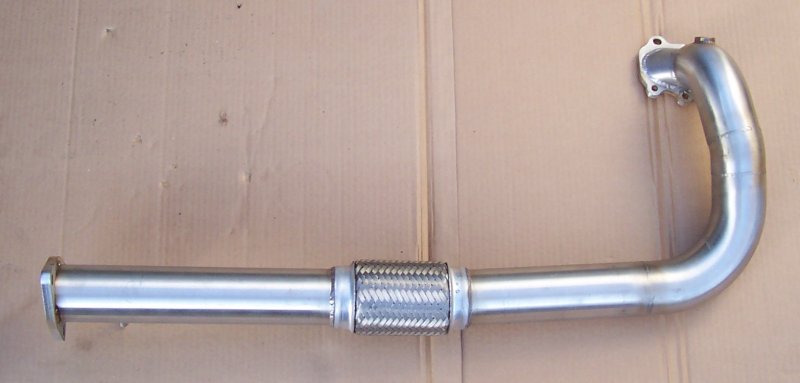

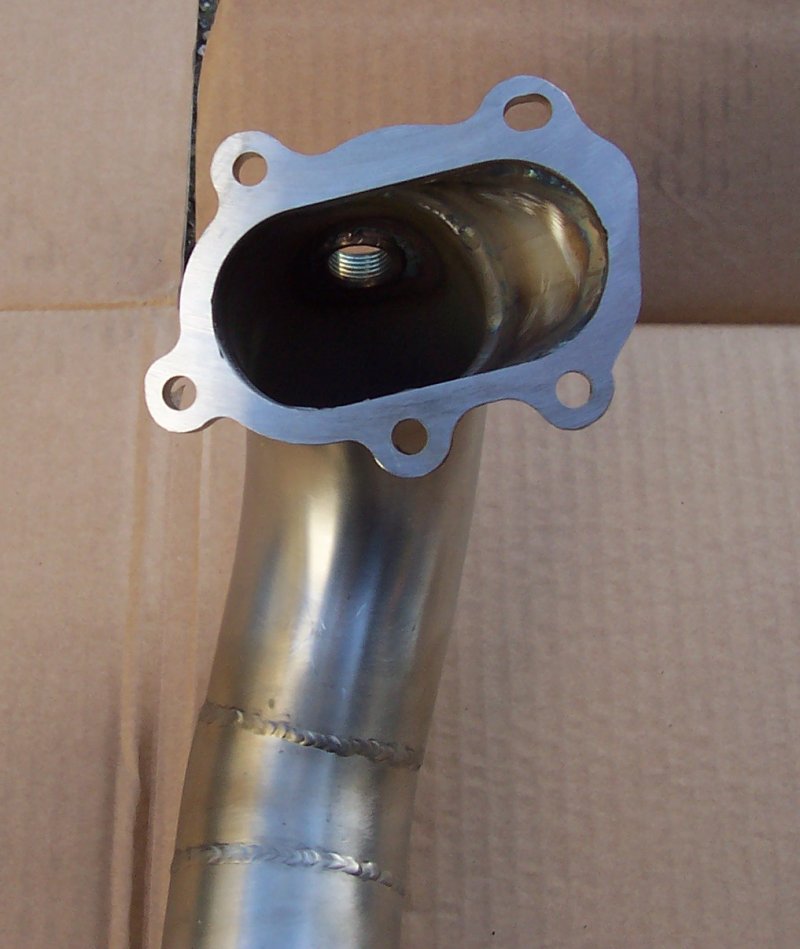

New 'Intelligent Tuning' downpipe
|
|
|
|
Better free-flow elbow
|
|
|
|
Custom cam covers.
|
|
|
New update: - 17/05/2008

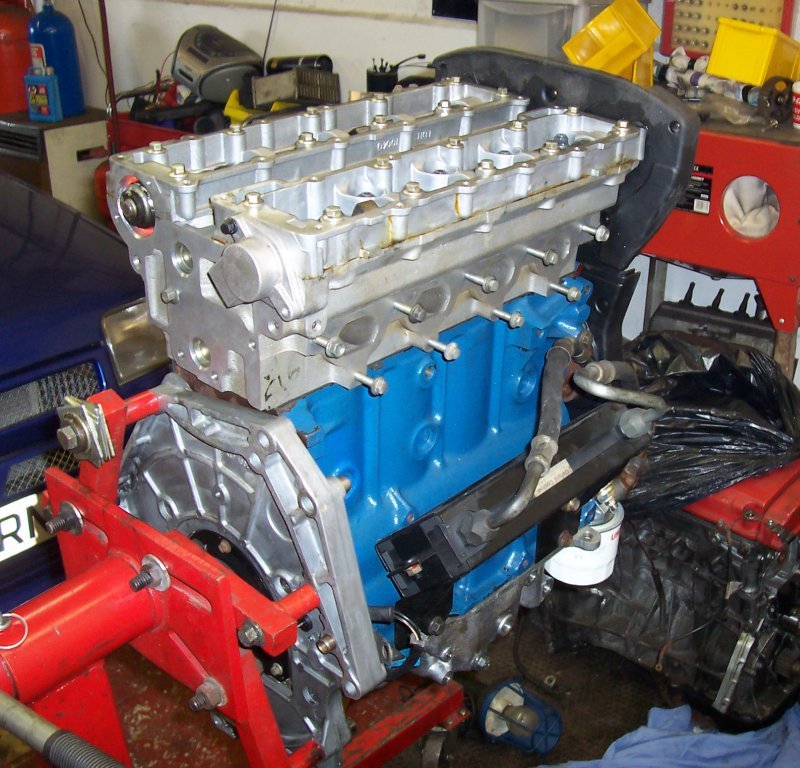

Engine built and ready to go in.
|
|
|
|
Block ready for pistons.
|
|
|
|
Bottom end, pistons in.
|
|
|
|
Head on
|
|
|
|
Blue verniers
|
|
|
|
Back end with oil cooler.
|
|
|
|
|
|

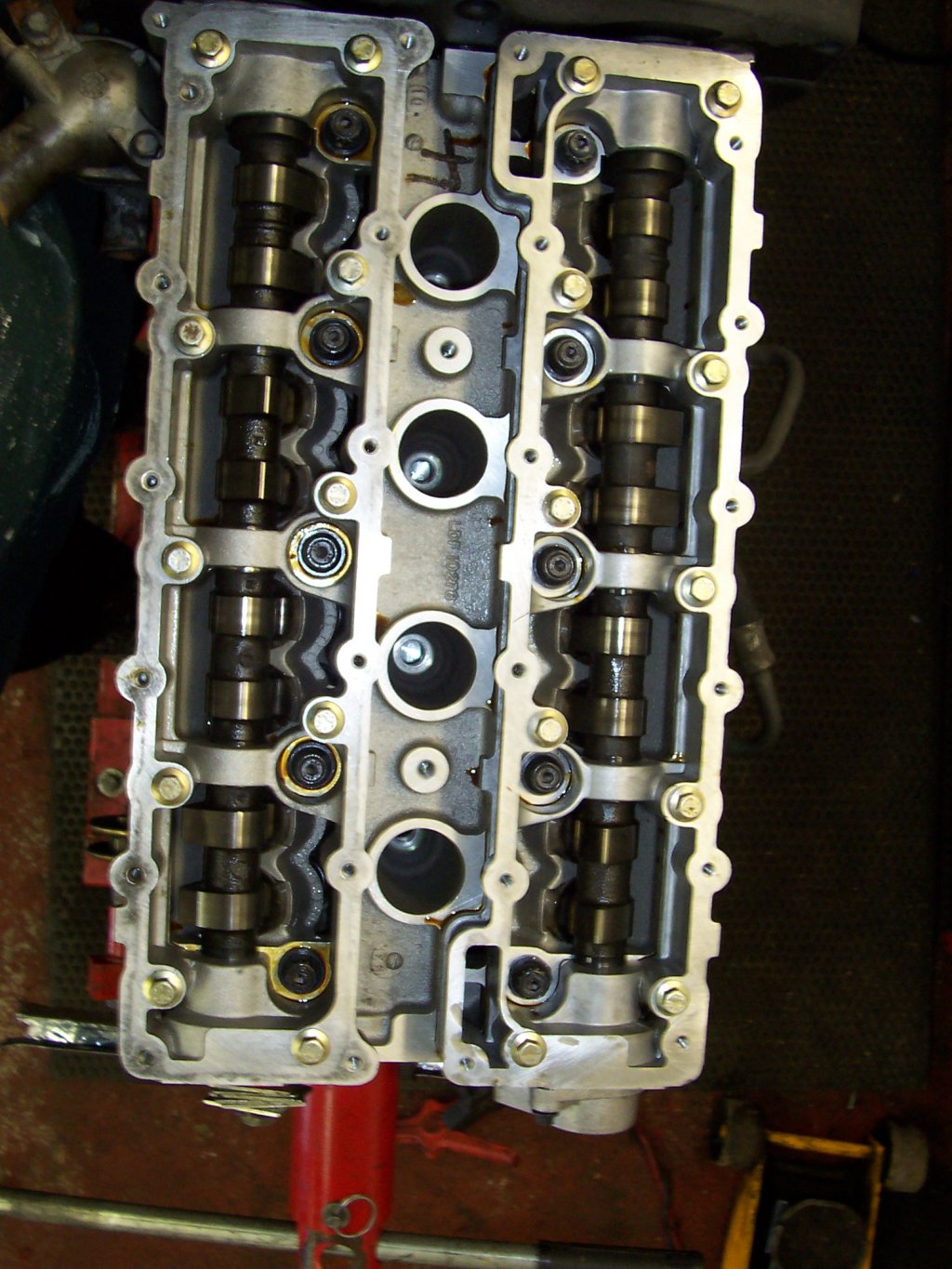

Top end with piper cams.
|
|
|
|
Nearly ready to go.
|
|
|
|
Inlet manifold on.
|
|
|
|
Ancillaries bolts on.
|
|
|
|
Front shot.
|
|
|
|
